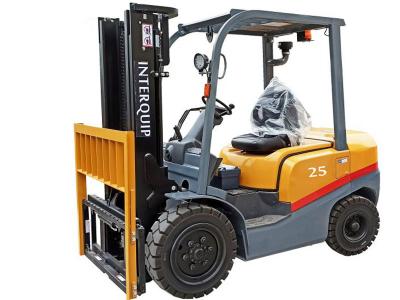

Interquip A Series 3 Ton Diesel Forklift

Rated Capacity: 2.5 Ton/ 2500 kg Engine: Xinchai C490/ISUZU Engine C240/ MITSUBISH S4S Lifting Height: 3-6m (Duplex/Triple) Tyre: Pneumatic Tyre/Solid Tyre Feature:  -- Reasonable layout of hose and hard pipe, reduce oil pressure loss; -- The mature and reliable engine provides plenty of power; -- The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle; -- The enhanced transmission system has stronger shock resistance and bump resistance. Specifications: Model UNIT FD25T Specifications Power Unit   Diesel Operator Type   Driver/Seat Transmission Box Type   Automatic Transmission Rated Capacity kg 2500 Load Center mm 500 Max.Lifting Height mm 3000 Tire Type   Pneumatic Tire Tire Number Front   2 Rear 2 Tire Size Front   7.00-12-12PR Rear 6.0-9-10PR Performance Lifting Speed Loaded mm/s 550 Unloaded 580 Lowering Speed Loaded mm/s 480 Unloaded 450 Travelling Speed Loaded km/h 20 Unloaded 21 Max.Gradeability (Loaded) % 20 Max.Drawbar Pull (Loaded) kn 14 Mast Tilting Angle (Fwd/Bwd) deg 6/12 Free Lifting Height mm 140 Turning Radius mm 2210 Dimensions Overall Length (with fork) mm 3660 Overall Width mm 1150 Overhead Guard Height mm 2125 Fork Size (LxWxT) mm 1220×122×40 Mast Height (Fork lowered) mm 2090 Battery (Voltage/Capacity) V/Ah 12/90 Truck Weight kg 3765 Fuel Tank Capacity L 70 Engine Brand   XINCHAI MITSUBISH ISUZU Model   C490 S4S C240 Rated Power kw/rpm 40/2650 35.3/2250 35.4/2500 Rated torque n-m/rpm 160/1600-2000 169/1700 137.7/1800 Number Of Cylinder   4 4 4 Displacement   2.67 2.49 2.37 Packing

A Series Economic Style  2 Ton Diesel Forklift with Xinchai Engine Rated Capacity: 2 Ton/ 2000kg Engine: Xinchai C490/ISUZU Engine C240/ MITSUBISH S4S Lifting Height: 3-6m (Duplex/Triple) Tyre: Pneumatic Tyre/Solid Tyre Details Specification Model UNIT FD20T Specifications Power Unit   Diesel Operator Type   Driver/Seat Transimission Box Type   Automatic Transmission Rated Capacity kg 2000 Load Center mm 500 Max.Lifting Height mm 3000 Tire Type   Pneumatic Tire Tire Number Front   2 Rear 2 Tire Size Front   7.00-12-12PR Rear 6.0-9-10PR Performance Lifting Speed Loaded mm/s 560 Unloaded 580 Lowering Speed Loaded mm/s 480 Unloaded 450 Travelling Speed Loaded km/h 20 Unloaded 21 Max.Gradeability (Loaded) % 20 Max.Drawbar Pull (Loaded) kn 14 Mast Tilting Angle (Fwd/Bwd) deg 6/12 Free Lifting Height mm 140 Turning Radius mm 2150 Dimensions Overall Length (with fork) mm 3640 Overall Width mm 1150 Overhead Guard Height mm 2125 Fork Size (LxWxT) mm 1220×122×40 Mast Height (Fork lowered) mm 2090 Battery (Voltage/Capacity) V/Ah 12/90 Truck Weight kg 3440 Fuel Tank Capacity L 70 Engine Brand   XINCHAI MITSUBISH ISUZU Model   C490 S4S C240 Rated Power kw/rpm 40/2650 35.3/2250 35.4/2500 Rated torque n-m/rpm 160/1600-2000 169/1700 137.7/1800 Number Of Cylinder   4 4 4 Displacement   2.67 2.49 2.37

4.2 Ton Diesel Forklift with CE Certification for Material Handling Rated Capacity: 4.2 Ton/ 4200 kg Engine: Xinchai A498/ISUZU Engine 4JG2/ MITSUBISH S4S Lifting Height: 3-6m (Duplex/Triple)  Tyre: Pneumatic Tyre/Solid Tyre Attachment: Side Shift / Positioner / Block Clamp / Carton Clamp / Single-double Forks / Paper Roll Clamp Feature:  -- Reasonable layout of hose and hard pipe, reduce oil pressure loss; -- The mature and reliable engine provides plenty of power; -- The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle; -- The enhanced transmission system has stronger shock resistance and bump resistance. Specifications Model UNIT FD42T Specifications Power Unit Diesel Operator Type Driver/Seat Transmission Box Type Automatic Transmission Rated Capacity kg 4200 Load Center mm 500 Max.Lifting Height mm 3000 Tire Type Pneumatic Tire Tire Number  Front 2 Rear 2 Tire Size  Front 250-15-16PR Rear 6.5-10-10PR Performance Lifting Speed Loaded mm/s 430 Unloaded 480 Lowering Speed  Loaded mm/s 400 Unloaded 380 Travelling Speed  Loaded km/h 20 Unloaded 21 Max.Gradeability (Loaded) % 20 Max.Drawbar Pull (Loaded) kn 18 Mast Tilting Angle (Fwd/Bwd) deg 6/12 Free Lifting Height mm 150 Turning Radius mm 2560 Dimensions Overall Length (with fork) mm 3930 Overall Width mm 1300 Overhead Guard Height mm 2155 Fork Size (LxWxT) mm 1220×150×50 Mast Height (Fork lowered) mm 2140 Battery (Voltage/Capacity) V/Ah 12/90 Truck Weight kg 4900 Fuel Tank Capacity L 70 Engine Brand  XINCHAI ISUZU MITSUBISH Model A498 4JG2 S4S Rated Power kw/rpm 42/2650 44.8/2450 35.3/2250 Rated torque n-m/rpm 174/1600 186/1800 169/1700 Number Of Cylinder 4 4 4 Displacement 2.8 3.06 2.49 Packing

New Generation Agricultural Machinery Construction Small Front End Wheel Loader with CE 1. Humanized design 2. European-style appearance, luxurious interior cab. 3. Full glass cockpit door, wide field of vision 4. Brake pipe with protective cover 5. The unique external setting of the injector is convenient for concentrated oil injection. 6. Fine line design, reasonable pipeline layout, easy maintenance 7. Automatic leveling, reducing driver fatigue  Specification Model   918 Rated load kg 1500 Operation total weight kg 3800 Overall Length mm 5100 Overall Width mm 1800 Overall Height mm 2750 Spread of axles mm 2150 Wheelbase mm 2100 ground clearance mm 200 Bucket width mm 1800 Turning radius (tyre center) mm 4500 Turning radius (outside of bucket in transportation position) mm 5500 Max Working height mm 3800 Max unloading height mm 3200 max unloading distance mm 800 Max steering angle ° 38 Trinomial sum sec 10.5 Working hydraulic system pressure Mpa 18 Tyre   20.5-16 Rated power (Yunnei)  kW 37/42/58 Rated power (Yunnei)  kW   Rated speed r/min 2200 Bucket capacity m³ 0.8 Bucket capacity(Long arm)option m³ 0.8 Max speed km/h 38 Forward gear I km/h 6.8 Forward gear II km/h 12 Rear gear I km/h 6.5 Rear gear II km/h 11.8 Max breakout force KN 100 Max traction KN 98 Max climbing ablity ° 29

Construction Machinery 37.5 Ton Crawler Excavator Medium Excavator Construction Equipment *High-end first-class core configuration Isuzu engines comply with Stage III emissions, saving fuel and energy. International brand main pump and main valve World-brand hydraulic components ensure high reliability of the hydraulic system *Greater reliability and durability Rugged, high-strength body Reinforced boom, stick, and bucket structural parts *More coordinated comfort Highly rigid new cab, quiet and comfortable Color LCD monitor for convenient monitoring and maintenance Various working modes and optional sizes Specifications MODEL Unit ITQ 390.9 Operating weight  Ton 37.5 Bucket capacity  m³ 1.6-1.9 Engine model 五十铃6HK1X Rated power  kw/r/min 212/2000 Volume of fuel tank L 595 Travel speed km/h 5.2/3.3 Swing speed r/min 8.5 Max climbing degree ° 70 Bucket digging force at power max  ISO KN 256 Average grounding pressure KPA 70.8 Hydraulic pump model InLine V90N180/ KPM K5V160DT Maximum flow  L/min 360x2/320x2 Setting pressure  MPa 37 Volume of hydraulic tank L 310 A  Overall length mm 11150 B  Overall width mm 3190 C  Overall height （to top of boom mm 3280 D  Overall height （to top of cab） mm 3280 E  Counterweight ground clearance  mm 1210 F  Min. ground clearance   mm 495 G  Tail swing radius mm 3420 H  Track grounding length  mm 4030 J  Track length mm 4955 K  Track gauge mm 2590 L  Track width  mm 3190 M  Track shoe width mm 600 N  Turntable width mm 2995 O  Max. digging height  mm 9800 P  Max. dumping height  mm 6830 Q  Max. digging depth mm 6890 R  Max. vertical wall digging depth mm 6000 S  Max. digging depth for 2.5m horizontal plane mm 6800 T  Max. digging reach mm 10800 U  Max.digging reach at ground level  mm 10600 V  Min. swing radius  mm 4285 W  Max. height at min swing radius mm 8500 X Distance from swing center to rear mm 3420 Z  Height of counterweight  mm 2715 A1 Grounding length (in transportation)  mm 5950 Arm length mm 2900 Boom length  mm 6470

20 Ton Backhoe Excavator Long Reach Compact Excavator *High-end first-class core configuration Yanmar engines comply with Stage III emissions, saving energy and fuel. International brand main pump and main valve World-brand hydraulic components ensure high reliability of the hydraulic system *Greater reliability and durability Rugged, high-strength body Reinforced boom, stick, and bucket structural parts *More coordinated comfort Highly rigid new cab, quiet and comfortable Color LCD monitor for convenient monitoring and maintenance Multiple operating modes available Specifications MODEL Unit ITQ 205.9 Operating weight Ton 21.3 Bucket capacity  m³ 0.93 Engine model 广康QSB7.0 三菱 4M50 Rated power  kw/r/min  124/2000  118/2000 Volume of fuel tank L 420 Travel speed km/h 5.2/3.5 Swing speed r/min 11.5 Max climbing degree ° 70 Bucket digging force at power max   ISO KN 157 Average grounding pressure KPA 46.5 Hydraulic pump model EDDIE FMP112APDT  KPM K3V112DT Maximum flow  L/min 215*2 228*2 Setting pressure  MPa 37 Volume of hydraulic tank  L 246 A  Overall length  mm 9560 B  Overall width mm 2780 C  Overall height （to top of boom） mm 3040 D  Overall height （to top of cab） mm 3120 E  Counterweight ground clearance  mm 1065 F  Min. ground clearance   mm 466 G  Tail swing radius  mm 2720 H  Track grounding length mm 3260 J  Track length  mm 4060 K  Track gauge mm 2180 L  Track width  mm 2780 M  Track shoe width  mm 600 N  Turntable width mm 2700 O  Max. digging height mm 9275 P  Max. dumping height  mm 6560 Q  Max. digging depth  mm 6515 R  Max. vertical wall digging depth  mm 5915 S  Max. digging depth for 2.5m horizontal plane mm 6380 T  Max. digging reach mm 9865 U  Max.digging reach at ground level   mm 9680 V  Min. swing radius  mm 3630 W  Max. height at min swing radius  mm 7670 X Distance from swing center to rear  mm 2720 Z  Height of counterweight  mm 2120 A1 Grounding length (in transportation)  mm 4850 Arm length mm 2900 Boom length mm 5700
